Value Entry

Value entry

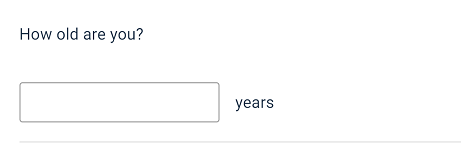

Value entry questions are used with textboxes, and these are validated server side. This could look something like this:

1{
2  "traversalId": "55babc25-b76b-4f7c-86d3-b4c970ae4ab1",
3  "algoId": 4550,
4  "nodes": [
5    {
6      "nodeId": 533,
7      "assetId": 0,
8      "errors": [],
9      "displayText": null,
10      "title": null,
11      "explanation": null,
12      "data": null,
13      "questions": [
14        {
15          "nodeId": 533,
16          "questionId": 19063,
17          "displayText": "How old are you?",
18          "title": null,
19          "answers": [
20            {
21              "nodeId": 533,
22              "questionId": 19063,
23              "answerId": 16309,
24              "controlType": "Number",
25              "controlValue": null,
26              "controlChecked": false,
27              "displayText": "years",
28              "explanation": "",
29              "data": {
30                "Properties": { "Align": "AnswerLeft", "NumericKeypad": "" }
31              }
32            }
33          ],
34          "explanation": "",
35          "data": {}
36        }
37      ],
38      "isTable": false
39    }
40  ],
41  "assessmentType": 0,
42  "algoName": "Age & Gender",
43  "errors": [],
44  "previousDisabled": true,
45  "nextDisabled": false,
46  "language": "DEFAULT"
47}

Textarea

Textarea questions are used for multiline text input, allowing users to provide longer form responses. The Textarea control type supports optional minLength and maxLength validation.

Note: The Textarea control type is only available when using the v3 API. See API Version Override for details on how to configure this.

1{
2  "traversalId": "55babc25-b76b-4f7c-86d3-b4c970ae4ab1",
3  "algoId": 5459,
4  "nodes": [
5    {
6      "nodeId": 6,
7      "assetId": 0,
8      "errors": [],
9      "displayText": null,
10      "title": null,
11      "explanation": null,
12      "data": null,
13      "questions": [
14        {
15          "nodeId": 6,
16          "questionId": 30242,
17          "displayText": "Describe your symptoms",
18          "title": null,
19          "answers": [
20            {
21              "nodeId": 6,
22              "questionId": 30242,
23              "answerId": 38687,
24              "controlType": "Textarea",
25              "controlValue": null,
26              "controlChecked": false,
27              "displayText": "Please provide details",
28              "explanation": "",
29              "data": {}
30            }
31          ],
32          "explanation": "",
33          "data": {}
34        }
35      ],
36      "isTable": false
37    }
38  ],
39  "assessmentType": 0,
40  "algoName": "Symptom Checker",
41  "errors": [],
42  "previousDisabled": false,
43  "nextDisabled": false,
44  "language": "DEFAULT"
45}
