Grouped Questions

Grouped Questions

A Grouped Question's response will depend on which API you are using:

• Traversal API
• Chat Traversal API
• • Step 1
• • Step 2

Traversal API

A response with multiple nodes is refered to as "grouped questions". They are displayed on the screen at the same time; usually because they are relevant to each other. These could look something like this:

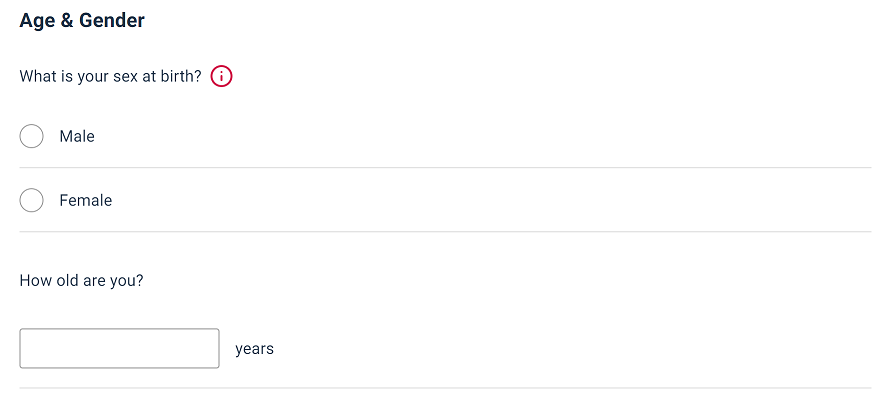

Figure 1: a group of two questions, displayed at the same time

{
  "traversalId": "...",
  "algoId": 4550,
  "nodes": [
    {
      "nodeId": 532,
      "assetId": 0,
      "errors": [],
      "displayText": null,
      "title": null,
      "explanation": null,
      "data": null,
      "questions": [
        {
          "nodeId": 532,
          "questionId": 70,
          "displayText": "What is your sex at birth?",
          "title": null,
          "answers": [
            {
              "nodeId": 532,
              "questionId": 70,
              "answerId": 88,
              "controlType": "Radio",
              "controlValue": null,
              "controlChecked": false,
              "displayText": "Male",
              "explanation": "",
              "data": {}
            },
            {
              "nodeId": 532,
              "questionId": 70,
              "answerId": 89,
              "controlType": "Radio",
              "controlValue": null,
              "controlChecked": false,
              "displayText": "Female",
              "explanation": "",
              "data": {}
            }
          ],
          "explanation": "This refers to your sex at birth. Many problems relate specifically to genetically male and female organs.",
          "data": {}
        }
      ],
      "isTable": false
    },
    {
      "nodeId": 533,
      "assetId": 0,
      "errors": [],
      "displayText": null,
      "title": null,
      "explanation": null,
      "data": null,
      "questions": [
        {
          "nodeId": 533,
          "questionId": 19063,
          "displayText": "How old are you?",
          "title": null,
          "answers": [
            {
              "nodeId": 533,
              "questionId": 19063,
              "answerId": 16309,
              "controlType": "Number",
              "controlValue": null,
              "controlChecked": false,
              "displayText": "years",
              "explanation": "",
              "data": {
                "Properties": { "Align": "AnswerLeft", "NumericKeypad": "" }
              }
            }
          ],
          "explanation": "",
          "data": {}
        }
      ],
      "isTable": false
    }
  ],
  "assessmentType": 0,
  "algoName": "Age & Gender",
  "errors": [],
  "previousDisabled": true,
  "nextDisabled": false,
  "language": "DEFAULT"
}

Chat Traversal API

The response for a grouped question on the Chat Traversal API will* only contain one question at a time. The next response will be the next question in the same group.

Step 1

For example, the first response for the above group (see Figure 1) will simply be the first question:

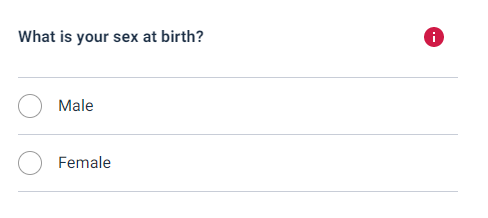

Figure 2a: first question of a group

{
    "traversalId": "...",
    "algoId": 4550,
    "nodeId": 532,
    "questions": [{
            "algoId": 4550,
            "nodeId": 532,
            "questionId": 70,
            "displayText": "What is your sex at birth?",
            "title": null,
            "answers": [{
                    "nodeId": 532,
                    "questionId": 70,
                    "answerId": 88,
                    "controlType": "Radio",
                    "controlValue": null,
                    "controlChecked": false,
                    "displayText": "Male",
                    "explanation": "",
                    "data": {}
                }, {
                    "nodeId": 532,
                    "questionId": 70,
                    "answerId": 89,
                    "controlType": "Radio",
                    "controlValue": null,
                    "controlChecked": false,
                    "displayText": "Female",
                    "explanation": "",
                    "data": {}
                }
            ],
            "explanation": "This refers to your sex at birth. Many problems relate specifically to genetically male and female organs.",
            "data": {}
        }
    ],
    "assessmentType": 0,
    "errors": [],
    "completed": false
}

Step 2

The second response, once the first has been answered, will be :

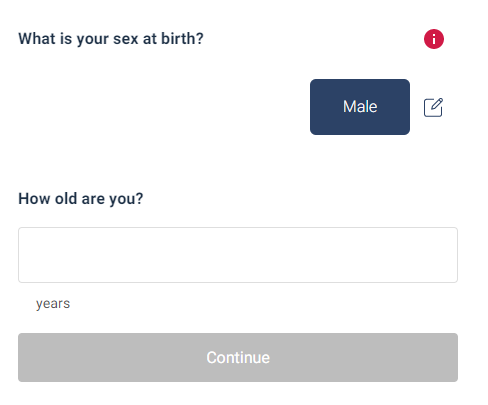

Figure 2b: second question of a group

{
    "traversalId": "...",
    "algoId": 4550,
    "nodeId": 533,
    "questions": [{
            "algoId": 4550,
            "nodeId": 533,
            "questionId": 19063,
            "displayText": "How old are you?",
            "title": null,
            "answers": [{
                    "nodeId": 533,
                    "questionId": 19063,
                    "answerId": 16309,
                    "controlType": "Number",
                    "controlValue": null,
                    "controlChecked": false,
                    "displayText": "years",
                    "explanation": "",
                    "data": {
                        "Properties": {
                            "Align": "AnswerLeft",
                            "NumericKeypad": ""
                        }
                    }
                }
            ],
            "explanation": "",
            "data": {}
        }
    ],
    "assessmentType": 0,
    "errors": [],
    "completed": false
}

*Except in cases where footers (e.g. copyright, etc) and headers (e.g. titles) are present.
